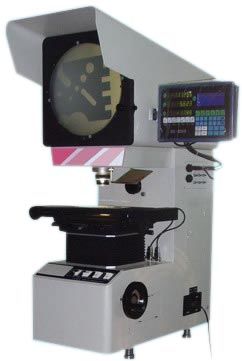

High accuracy 110V / 220V AC 50HZ Profile Projector VT-12-2010T for mechanic, electronic

  • High accuracy 110V / 220V AC 50HZ Profile Projector VT-12-2010T for mechanic, electronic
Menşe yeri Pekin
Marka adı HUATEC
Sertifika ISO, CE, GOST
Model numarası VT12-2010T
Min sipariş miktarı 1 adet
Ambalaj bilgileri Standart İhracat Paketi
Teslim süresi 1-4 gün
Ödeme koşulları T/T, PayPal, Western Union
Yetenek temini ayda 500 adet

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Vurgulamak

vertical profile projector

,

horizontal profile projector
Mesaj bırakın
Ürün Açıklaması
Uses and Features:
Profile Projector VT12 series are precise and excellent effective measuring instrument integrating Optic, Mechanic, Electricity, and Computer technology.


It is widely used in the field of mechanic, electronic, rubber industry, and college, research institute and the measuring checking department for checking product quality. VT12 can inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam, Screw thread, Gear, etc.

Technical Specification:
The Technical Specification of Profile Projector VT12 series (Unit: mm)
1, Model
VT12-1550T
VT12-2010T
2, Stage Travel: X and Y-axis
150×50
200×100
3, Metal stage dimension
340×152
350×170
4, Glass Stage Dimension
196×96
246×120
5, Resolution of X and Y-scale
0.001
6, Travel: Z axis
90 (for focusing)
7, Screen diameter
Ø308, effective range≥Ø300mm
8, Rotary range of screen
0～360°
9 Resolution of Rotary Indicator
1'/0.01°
10, Accuracy
≤4+L/50 (um)
11, Objective magnification
10X(Std.)
20X(Opt.)
50X(Opt.)
100X(Opt.)
12, Object view-field
30
15
6
3
13, Work distance
78.33
44.30
24.50
25.30
14, Data Processor
Multifunctional LED Digital Readout DC 3000
15, Instrument Illumination
Surface and Contour Illumination: 24V/150W halogen lamp
16, Power
110V/ 220V(AC), 50/60HZ
17, Dimension (D× W × H)
770 × 550 × 1100/770 × 810 × 1120
18, Instrument Weight
130Kg
170Kg
130Kg
170Kg



Optional Accessories:
Working Stand; Objective 20X, 50X, 100X; Rotary table; mini-printer; Over chart and measuring software
