Measure Ultra-Thin Workpieces Down To 0.15mm Two Points Ut Thickness Meter

  • Measure Ultra-Thin Workpieces Down To 0.15mm Two Points Ut Thickness Meter
  • Measure Ultra-Thin Workpieces Down To 0.15mm Two Points Ut Thickness Meter
  • Measure Ultra-Thin Workpieces Down To 0.15mm Two Points Ut Thickness Meter
  • Measure Ultra-Thin Workpieces Down To 0.15mm Two Points Ut Thickness Meter
  • Measure Ultra-Thin Workpieces Down To 0.15mm Two Points Ut Thickness Meter
Menşe yeri Pekin
Marka adı HUATEC
Sertifika ISO, CE, GOST
Model numarası TG-3230
Min sipariş miktarı 1 adet
Ambalaj bilgileri Standart İhracat Paketi
Teslim süresi 1-4 gün
Ödeme koşulları T/T, PayPal, Western Union
Yetenek temini ayda 500 adet

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
kristal Tek eleman Karar 0,001 mm
Malzeme ABS Ürün Adı ut kalınlık ölçer
Ağırlık Piller dahil 210g Ölçüm Aralığı (çelik için) Arayüz-Eko Modu: 1,50mm– 20,0mm,Eko-Yankı Modu:0,3-10,0mm
Doğruluk ±0,005 mm veya 0,0002 inç (kalınlık < 3 mm ise), ±0,05 mm veya 0,002 inç (kalınlık < 20 mm ise Görüntüle EI arka aydınlatmalı ve ayarlanabilir kontrastlı 42×57 mm LCD boyutu, 13,75 mm'ye (0,54 inç) kad
Boyut 2.9 W x 5.9 H x 1.26 D inç (73 W x 149 H x 32 D mm). İletişim Portu USB bağlantı noktası veya Seri RS 232 bağlantı noktası (İsteğe bağlı)
Mesaj bırakın
Ürün Açıklaması

Measure Ultra-Thin Workpieces Down To 0.15mm Two Points Ut Thickness Meter

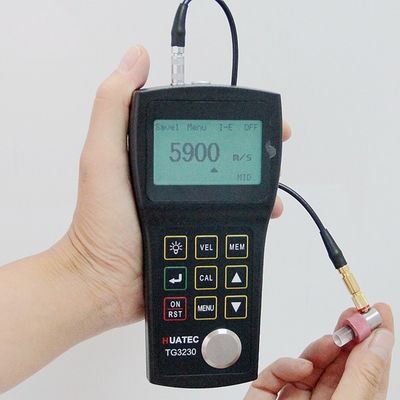

TG-3230 is a simple to use, hand-held UT thickness meter for high precision, high resolution and ultra thin thickness measurement.

It uses nowadays the most advanced microprocessor and ultrasonic technology to offer users many outstanding features.

It presents highly stable and repeatable reading, high accuracy and resolution( up to 0.001mm or 0.0001inch ) and ability for measuring ultra thin sample ( as low as 0.20mm or 0.008inch).

It also offers a compact, comfortable and durable structure, ease of operation through the menu, multiple language selection, low power consumption ( with two dry or optional rechargeable AA batteries).

These features along with its high quality probe make TG-3230 unequalled in its performance as well as its value!



MAIN FEATURES

    * Very high accuracy and resolution: up to 0.001mm or 0.0001 inch
    * Measure ultra thin sample as low as 0.20mm or 0.008 inch
    * Display units:Imperlal and metric
    * Automatic self calibration
    * Couplant indicator
    * Automatic power off function
    * High-low limit alarm function
    * Lcd brightness adjust function
    * Low battery indictor function



TECHNICAL SPECIFICATIONS

Measuring Range (for steel)

Interface-Echo Mode:

(I-E or Standard Mode)

1.50mm– 20.0mm

(0.059in – 0.787 in)

Echo-Echo Mode:

(E-E or High Precision Mode)

0.2mm– 10.0mm

(0.006in – 0.394in)

Measuring Accuracy

±0.005mm or 0.0002 inch (if thickness < 3mm)

±0.05mm or 0.002 inch (if thickness < 20mm)

Display Resolution

mm : 0.1 / 0.01 / 0.001

inch : 0.01 / 0.001 / 0.0001

Sound Velocity Range

1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms)

Measuring Refresh Frequency

4Hz in normal mode, up to 25Hz

Memory Capacity

500 test values

Multiple Calibrations

One point or Two Point

Display LCD

42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)

Power Source

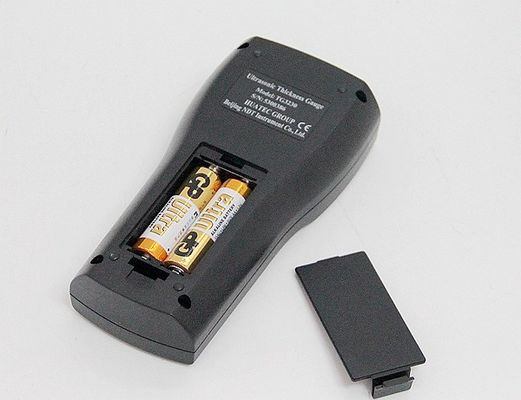

2 pcs. 1.5v AA size batteries

Continuous working period

About 200 hours (with backlight off)

Power off

Auto power off if idle for 4 minutes

Operating Temperature

-10 °Cto +50 °C

Unit Size

2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).

Weight

200g



Measure Ultra-Thin Workpieces Down To 0.15mm Two Points Ut Thickness Meter 0



MEASURING PROCESS



If the word-piece is not steel or other iron-based materials, make sure to input correct sound velocity value for the sample to be tested.



Put some proper coupling paste on the work-piece, then place the probe on the surface of the sample with some press force. The thickness value will display on LCD screen in either mm or inch. The gauge shows the measuring result whenever the probe is coupled with the work-piece for longer than 2 seconds with coupling paste.





STANDARD DELIVERY

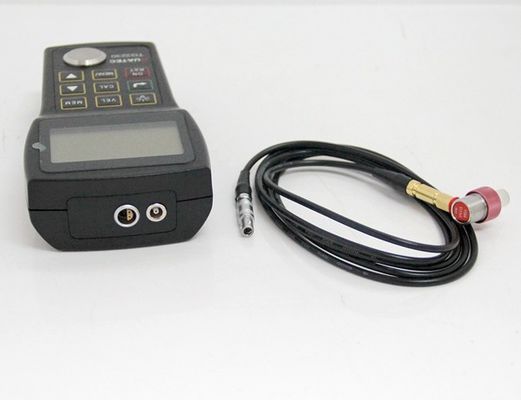

  1. Ultrasonic Thickness Gauge TG3230 Main unit with Calibration block (4.00 mm)

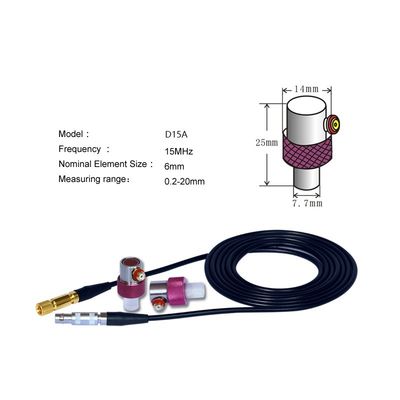

  2. Precision Probe (D15A) with Replaceable Delay Tip, see photo below
  3. Coupling Paste
  4. Operation Manual and Calibration Certificate
  5. Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
  6. Carrying Case
