Rockwell Hardness Tester Rockwell C Hardness Tester Rockwell Hardness R Scale

  • Rockwell Hardness Tester Rockwell C Hardness Tester Rockwell Hardness R Scale
  • Rockwell Hardness Tester Rockwell C Hardness Tester Rockwell Hardness R Scale
Menşe yeri Pekin
Marka adı HUATEC
Sertifika ISO, CE, GOST
Model numarası HR150P
Min sipariş miktarı 1 adet
Ambalaj bilgileri Standart İhracat Paketi
Teslim süresi 1-4 gün
Ödeme koşulları T/T, PayPal, Western Union
Yetenek temini ayda 500 adet

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Ön Yük 98,1N (10kgf) Toplam Test Gücü 588,4N (60kgf), 980,7N (100kgf), 1471N (150kgf)
Terazi HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV Karar 0,1 SA
Güç AC, 220V/110V, 50～60Hz, 4A Ağırlık 150kgs, net ağırlık 100kgs
Boyut 550mm×200mm×720mm
Vurgulamak

rockwell superficial hardness tester

,

vickers hardness machine
Mesaj bırakın
Ürün Açıklaması

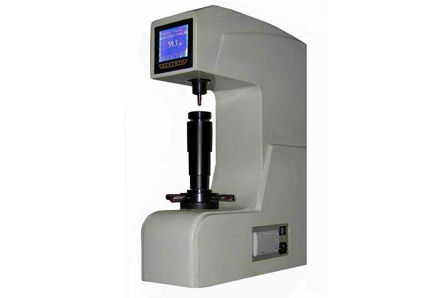

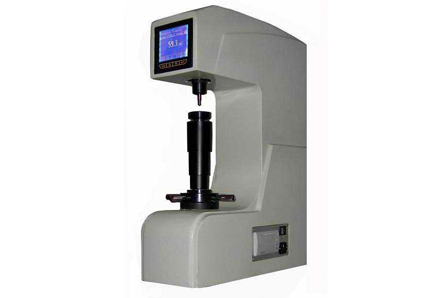

Rockwell Hardness Tester Rockwell C Hardness Tester Rockwell Hardness R Scale

·       HR150P can be used directly to measure Rockwell hardness for metal and plastic material.
·       Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.
·       Automatic test force switch according the selected scale without manual operation.
·       Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.
·       Measuring results digitally displaying and can be printed, or transmitted to external computer automatically.
·       The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc.
·       Test value can be transformed to the value of HB, HV, HLD, HK and σb value.
·       The tester meets all the following standard such as ISO 6508-2, ASTM E18, BS EN ISO6508-2, GB/T230.2.
·       Preload:98.1N (10kgf)
·       Total test force:588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
·       Scales:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
·       Load cycle: 3～8s
·       Load dwell duration: 2～50s, can be set
·       Resolution :0.1HR
·       Display:High definition backlight LCD
·       Operation:Menu selectable, Membrane keypad
·       Upper/lower limits setting & alarming
·       Data statistics: Avg., Max., Min., S, R available
·       Curved surface correcting automatically
·       Memory: Max 500 items of test results stored automatically
·       Data output: USB port to external PC
·       With integrated micro-printer and printing measuring results automatically
·       Testing space:200mm in vertical, 165mm in horizontal
·       Dimensions: 550mm×200mm×720mm
·       Power supply: AC, 220V/110V, 50～60Hz, 4A
·       Net weight: 100kg



 Standard configuration



Host machine

1



Standard hardness block for A scale

1



Standard hardness block for B scale

1



Standard hardness block for C scale

1



ball indenter (1/16″)

1



120°cone diamond indenter

1



Mounting screws for indenter

2



Flat anvil

1



“V ”shape anvil

1



Power supply wire

1



Screwdriver for indenter mounting

1



Dust cover

1

Optional accessories:



Short diamond indenter



Chisel diamond indenter



Slender diamond indenter



1/8″ball indenter and spare steel ball



1/4″ball indenter and spare steel ball



1/2″ball indenter and spare steel ball



φ225 anvil



φ150 anvil



Standard hardness block for other scales



Micro printer(for model HR1500)
