HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring

  • HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring
  • HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring
  • HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring
  • HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring
Menşe yeri Pekin
Marka adı HUATEC
Sertifika ISO, CE, GOST
Model numarası HGS923
Min sipariş miktarı 1 adet
Ambalaj bilgileri Standart İhracat Paketi
Teslim süresi 1-4 gün
Ödeme koşulları T/T, PayPal, Western Union
Yetenek temini ayda 500 adet

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Genel değer Çıktı 4-20mA veya 1-5V SAYISI 2. paslanmaz çelik, hava geçirmez, toprak bozulmasını azaltmak için elektriksel izolasyon
Çalışma sıcaklığı -20~80 oC Dağı 4.M5 vida
Doğruluk %5 (aralığa bağlı olabilir) verici BOYUTU 98x73x30(mm)
Güç 20~30V(DC) Çıkış Modu 2 hatlı döngü gücü veya 3 hatlı (güç, çıkış ve toprak)
Ölçüm doğruluğu (ivmeölçer dahil) 8,3 dB(Tam frekans aralığı), 1 dB(>2,5 Hz), 0,5 dB(>4 Hz)
Vurgulamak

portable vibration meter

,

digital vibration meter
Mesaj bırakın
Ürün Açıklaması

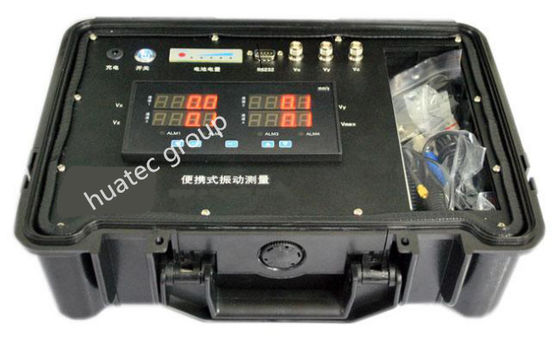

HGS923 Vibration Monitoring & Recording System



HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring 0

For continuous monitoring, Vibration transmitter + Recorder, 4 Channel Max, LCD display, Data save locally, Upload by RS485/232, USB, GPRS, Modem, Radio. Printer

Features:

l Overall value Output: 4-20mA or 1-5V, Displacement, Velocity, Bearing condition or Acceleration, True RMS, Equivalent Peak or Equivalent Peak-Peak (factory Optional)

l Optional dynamic waveform Output for FFT analysis at transmitter

l LCD displays of real-time & history curve, numerical values, and bar graph

Specification:

  • Accelerometer:



  • Shear-mode Ceramic piezoelectric

2. Case: stainless steel, air-tight, electrical isolation to reduce ground disturbance

3. Working temperature: -20~100oC or -20~180oC(high temperature type)

4. Mount: M5 screw



  • Transmitter:
  • Amplitude Range(To be defined, Default is Velocity 25mm/s) & Frequency Range:
  • Displacement(Equivalent Peak-Peak): 3mm, 1.2~1000Hz or 10~1000Hz
  • Velocity(True RMS): 25mm/s, 1.2~2000Hz or 10~2000Hz
  • Acceleration(Equivalent Peak): 100m/s2, 1.2Hz~10kHz or 10~1000Hz
  • Bearing condition(Acceleration envelope): 25 m/s2, 1.2Hz~2kHz demodulated
  • Working temperature: -20~80 oC
  • Accuracy: 5%(may depend on range)
  • Transmitter Size: 98x73x30(mm)
  • Power: 20~30V(DC)

6. Output mode:2-line loop power or 3-line(power, output, and ground)

7. 4-20mA Output:

  • Maximal transmit distance: 1km
  • Protection: open circuit, short circuit.

8. Measurement accuracy (include accelerometer): 3dB(Full frequency Range), 1dB(>2.5Hz), 0.5dB(>4Hz)

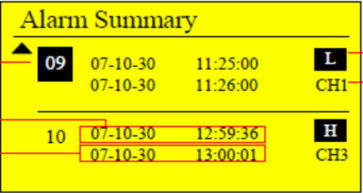

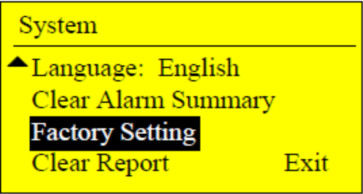

  • Display, Recorder and Alarming

1. LCD display, 3 inch, 128x64 dots, Sample frequency 1Hz,

2. Alarm: relay contact capacity: 250V 3A, 4-levels thresholds, 4 seconds alarm delay

HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring 1HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring 2HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring 3
