Handheld Black White Digital Densitometer With Density Tablet Hua-910a

  • Handheld Black White Digital Densitometer With Density Tablet Hua-910a
  • Handheld Black White Digital Densitometer With Density Tablet Hua-910a
  • Handheld Black White Digital Densitometer With Density Tablet Hua-910a
Menşe yeri Pekin
Marka adı HUATEC
Sertifika ISO, CE, GOST
Model numarası HUA-910A
Min sipariş miktarı 1 adet
Ambalaj bilgileri Standart İhracat Paketi
Teslim süresi 1-4 gün
Ödeme koşulları T/T, PayPal, Western Union
Yetenek temini ayda 500 adet

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
yoğunluk aralığı 0～5.0D Tekrarlanabilirlik Hatası ±0,03D
Kesin ölçümü olmayan (0,00D～3,00D)±0,03D (3,00D～4,00D)±0,04D (4,00D～4,50D)±0,05D Güç Gereksinimleri 50～60Hz, 220V±10%
Boyut 330×110×116mm Açıklık çapı 2mm hafif delik çapı
Ürün Adı Siyah-Beyaz Dansitometre Görüntüle 3 dijital LED
Çalışma ortamı 0～40℃, nem≤85% Ağırlık 1.7KG
Vurgulamak

handheld digital densitometer

,

black white digital densitometer

,

density tablet densitometer digital
Mesaj bırakın
Ürün Açıklaması

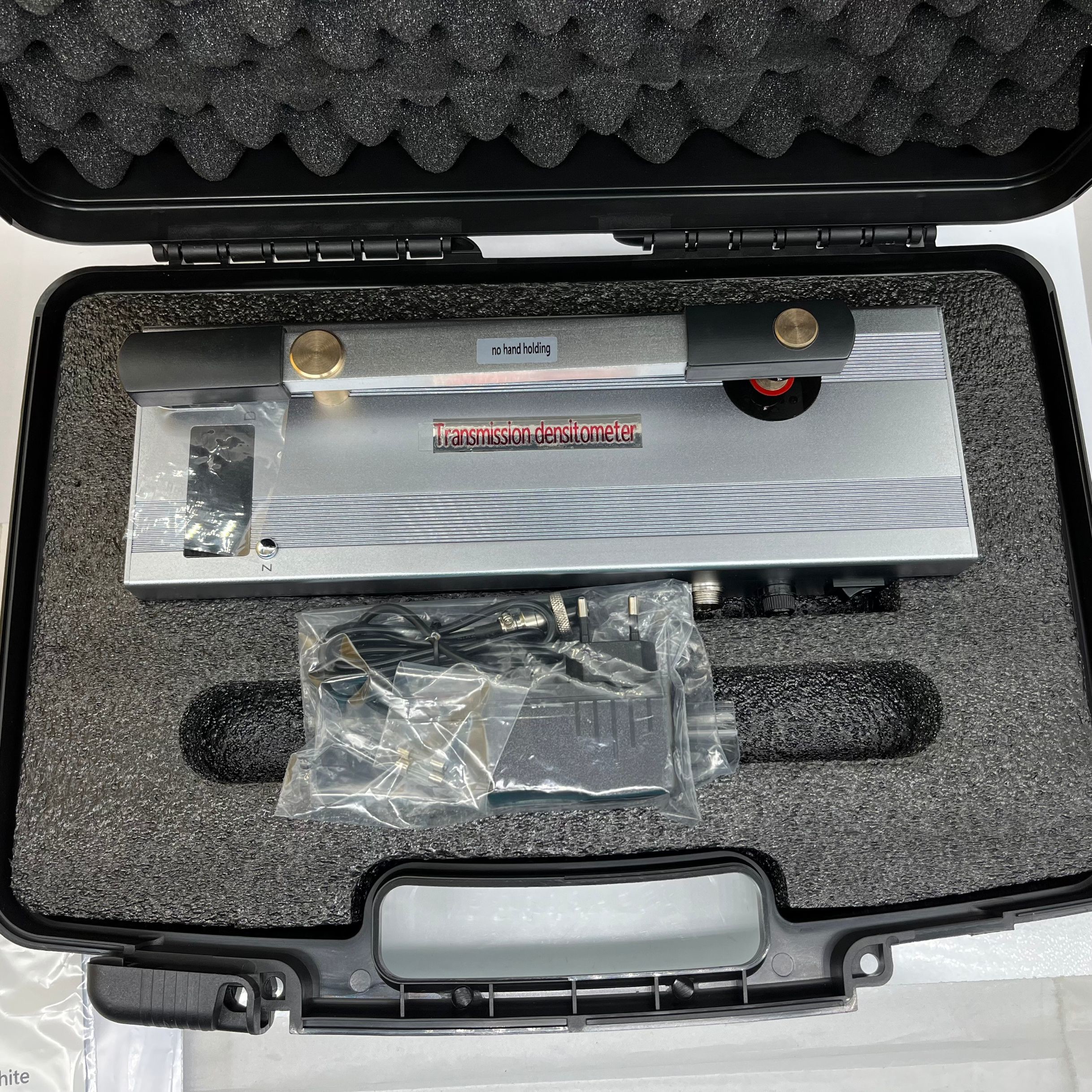

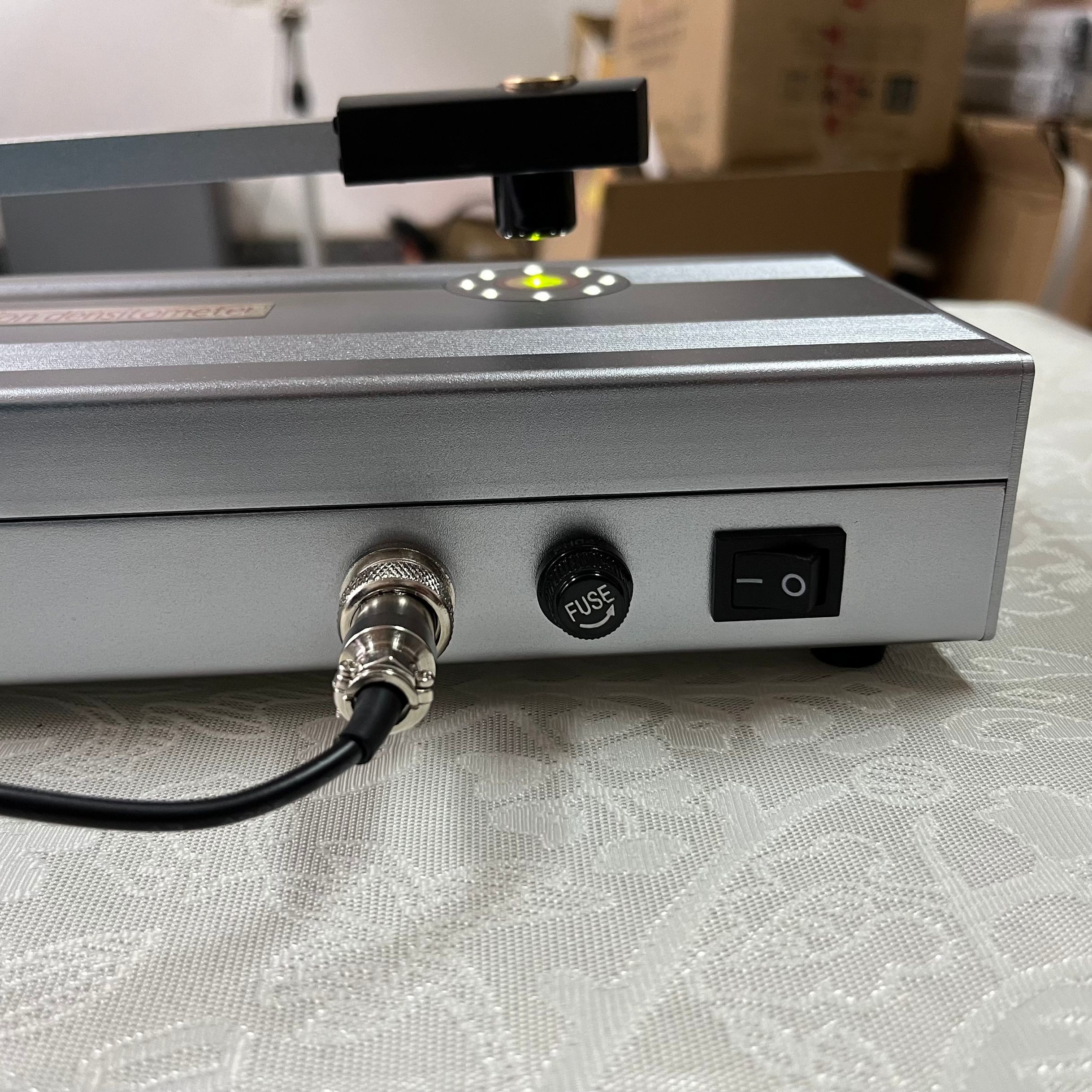

Handheld Black-White Densimeter Digital Densitometer With Density Tablet HUA-910A



HUA-910A portable black-and-white transmittance densitometer can measure both density value and density difference value.

The densitometer uses a high stability light source, uses a special light head structure, and uses high precision detection technology in the circuit part, which greatly improves the ability of resisting light and electric interference.

Improving the Measuring Accuracy of the Instrument by Special Fitting Technology.

The newly added viewing area can facilitate users to locate the checkpoint and measurement point accurately.

The instrument adopts metal shell, which can effectively shield the external electromagnetic interference and ensure the stability of the instrument.

HUA-910A Portable black-and-white transmittance densitometer has been rigorously debugged and tested when it leaves the factory.

After 5 minutes of preheating, users can make formal measurements only by pressing the zero-setting button.

The matching standard density sheet can facilitate the user to verify the accuracy of the instrument by himself.

HUA-910A Portable black-and-white transmittance densitometer is an enhanced type of HUA-910 which can measure the transmission density within 5.0D, is also of reference value for those larger than 5.0D.

HUA-910A Portable black-and-white transmission densitometer is an ideal instrument for X-ray quality analysis of pressure vessels, hulls, chemical industry, bridges, hospitals, etc.



Technique parameter

1 Measure range

HUA-910:     0～4.5D

HUA-910A:  0-5.0D
2 Measure area ф2mm(Optical aperture diameter)
3 Repetitive error ±0.01D
4 Deviation (0.00D～3.00D)±0.02D

(3.00D～4.50D)±0.03D

(4.50D～5.00D)±0.04D
5 Display Decode Screen Display
6.Adapter 8.4V--1000mA
7 Battery 2.2Ah
8 Recharge time ≤ 2h
9 Standby time ≥ 24h(In fact 28h)
10 Working time ≥ 4h(In fact 5h)
11 Consumption 4W
12 Working environment 0～40℃ , humidity≤ 85%
13.Size 51×21×42cm
14 Weight 3.5Kg



HUA-910A Portable black-and-white transmittance densitometer is an instrument for measuring the amount of light passing through the tested sample to determine the amount of light absorbed by the surface. It mainly consists of illumination system, light acquisition and measurement system and signal processing system. The stable optical signal is converted into electrical signal, and the signal is processed and sent to the processor. Finally, the density of the tested sample is displayed on the screen.



Standard delivery

1. Host 1pc

2. Power cable 1pc

3. Density step strip 1pc

4. Fuse 1pc

5. Instruction manual 1pc

6. Calibration certificate 1pc

7. Warranty card 1pc
