Asme-2007 Magnetic Flux Indicator Cx-430 GOST

Menşe yeri	Pekin
Marka adı	HUATEC
Sertifika	ISO, CE, GOST
Model numarası	CX-430
Min sipariş miktarı	10 adet
Ambalaj bilgileri	Standart İhracat Paketi
Teslim süresi	1-4 gün
Ödeme koşulları	T/T, PayPal, Western Union
Yetenek temini	ayda 500 adet

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

Ürün ayrıntıları

Malzeme	DT4A elektromanyetik saf demir levha	Renk	Metal yüzey parlak gümüş, paslanma, çizilme, korozyon vb.
düzlük	Test parçasını tamamen paralel olarak çıplak tahtaya koyun. Kırışıklık yok. Burt yok. Yüzeyin pürüzl	kusur derinliği	%30 Şim kalınlığı, 0.004" kalınlık
sembolün çapı	0.235 inç	test parçasının kalınlığı cx4-230	0.004 inç
oluk derinliği	0.0006 inç	oluk genişliği	0.006 inç
Ürün Adı	Kantitatif Kalite Göstergeleri
Vurgulamak	asme-2007 magnetic flux indicator , cx-430 magnetic flux indicator

Mesaj bırakın

Ürün Açıklaması

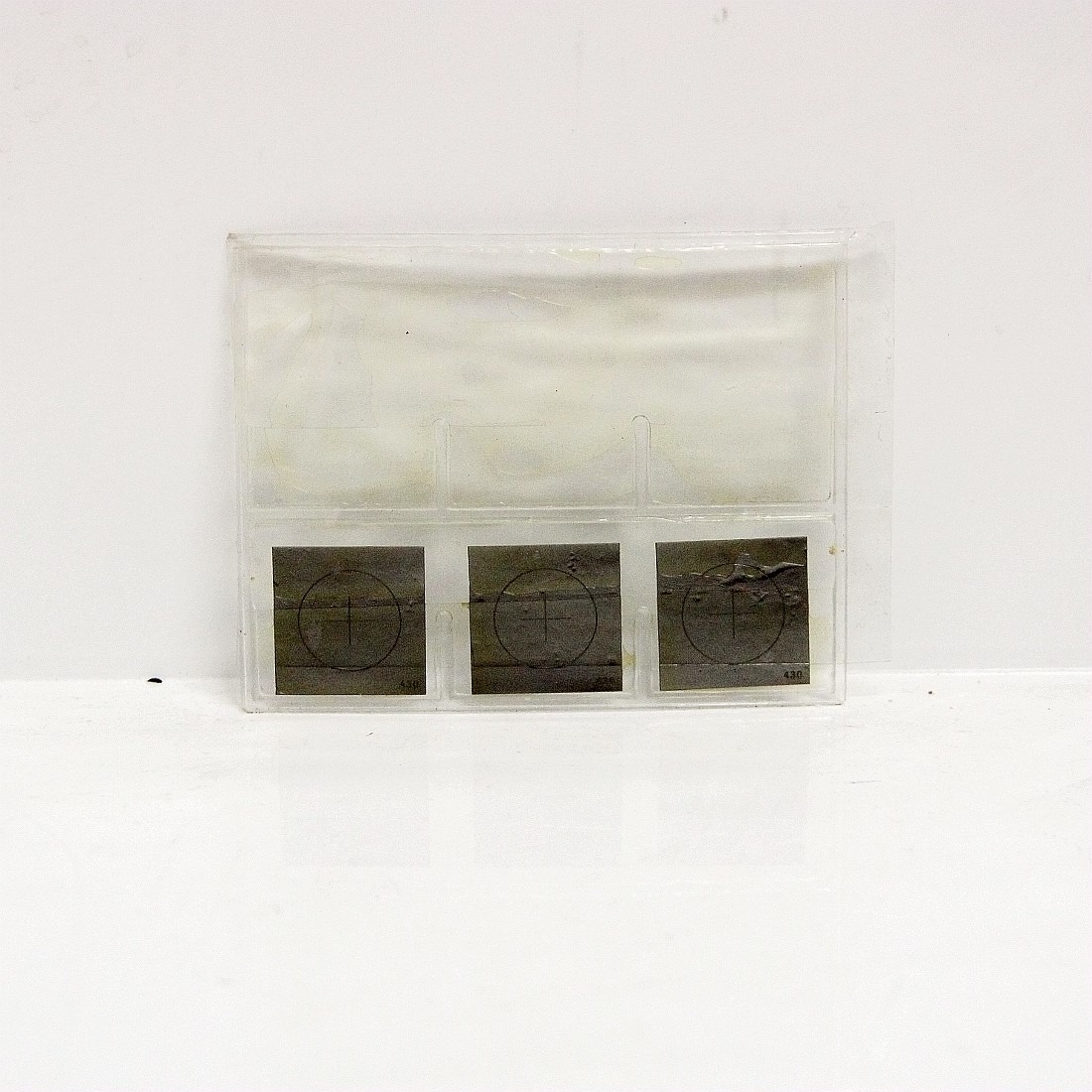

ASME-2007 Quantitative Quality Indicators Magnetic Flux Indicator QQI Test Shim CX-430

Overview

QQI's (Quantitative Quality Indicators) are magnetic particle test pieces with artificial defects used to verify proper field direction and adequate field strength. QQI's are a valuable tool to be used to establish testing criteria with Multi-Directional 2-D and 3-D type testers and to increase productivity by minimizing magnetizing shots.

QQI's are both thin and flexible to conform to the geometry of the test piece. They must be held in intimate contact with the test piece by either tape or glue.

Asme-2007 Magnetic Flux Indicator Cx-430 GOST 0

Specifications

Inspection items	The condition, method and demand of the test	Inspection demand
Color	Metal surface presents bright silver, no rust.no scratch, no corrosion and so on	Passed muster
Planeness	Put the test piece on bare board, parallel completely.no wrinkle.no burts.the surface’s roughness RA is 0.8um	Passed muster

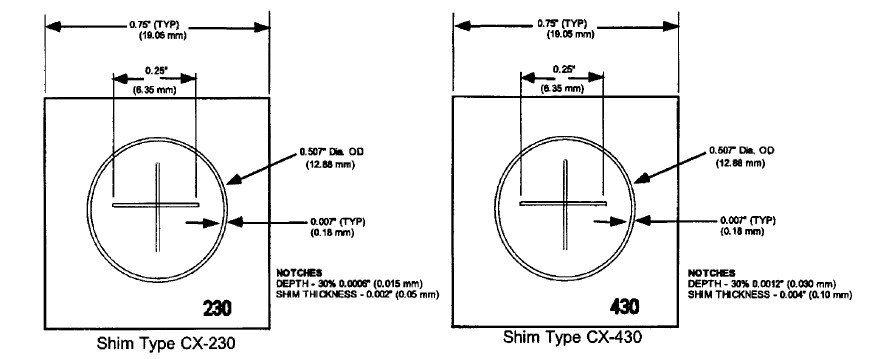

The size of sheet iron and cutting groove	The side length of test piece tested by milscale is 0.75in×0.75in.the average thickness of test piece CX-430 is 0.004in .The artificial defect symbol “o”and symbol“+”tested by precision microscope are both on the center of the test piece. The diameter of symbol four“o”is 0.507in,symbor“+”is 0.25in. The thickness of test piece CX-430 is 0.004in.the groove depth is 0.0012in, the groove width is 0.007in.	Passed muster
Quality	The physics and chemistry test show the result that the metal is made from DT4A electromagnetic pure iron plate. The analytic result of raw materials accords with the rule of GB6985,	Passed muster

Asme-2007 Magnetic Flux Indicator Cx-430 GOST 1

Other Magnetic flaw detectors test block:

MT test block

Asme-2007 Magnetic Flux Indicator Cx-430 GOST 2

Type N1: 45N, 5kgs

Type N2: 118N 12kgs

Type N3: 177N 18kgs

MT standard block

Asme-2007 Magnetic Flux Indicator Cx-430 GOST 3

Katos rong type B: DC HRC=90～95, 12 drilling through holes diameter 0.07inch, center hole diameter 31.8mm

Asme-2007 Magnetic Flux Indicator Cx-430 GOST 4

Type E: AC

Asme-2007 Magnetic Flux Indicator Cx-430 GOST 5

MTU test blcok
