70mm or 100mm Maximum Sample Width Cylindrical Mandrel Bend Tester

  • 70mm or 100mm Maximum Sample Width Cylindrical Mandrel Bend Tester
  • 70mm or 100mm Maximum Sample Width Cylindrical Mandrel Bend Tester
  • 70mm or 100mm Maximum Sample Width Cylindrical Mandrel Bend Tester
  • 70mm or 100mm Maximum Sample Width Cylindrical Mandrel Bend Tester
  • 70mm or 100mm Maximum Sample Width Cylindrical Mandrel Bend Tester
Menşe yeri Pekin
Marka adı HUATEC
Sertifika ISO, CE, GOST
Model numarası 1603
Min sipariş miktarı 1 adet
Ambalaj bilgileri Standart İhracat Paketi
Teslim süresi 1-4 gün
Ödeme koşulları T/T, PayPal, Western Union
Yetenek temini ayda 500 adet

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Maksimum örnek genişliği 70mm veya 100mm Numune Kalınlığı 0,3 ~ 1 mm
Çapları olan mandrel 2,3,4,5,6,8,10,12,13,16,19,20,25 ve 32mm
Vurgulamak

oating thickness tester

,

digital thickness gauge
Mesaj bırakın
Ürün Açıklaması

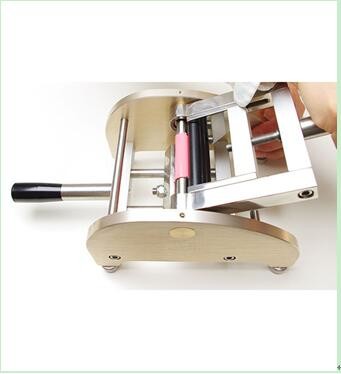

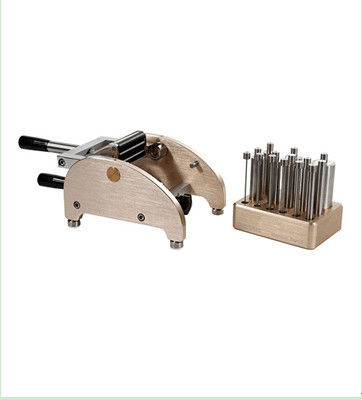

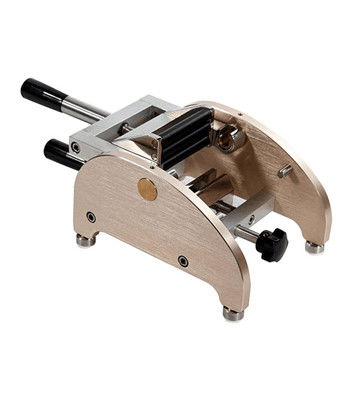

Cylindrical Mandrel Bend Tester

Product Introduction:

A very robust mechanical unit for determining the elasticity, adhesion and elongation of dry paint on metal sheet.

70mm or 100mm Maximum Sample Width Cylindrical Mandrel Bend Tester 070mm or 100mm Maximum Sample Width Cylindrical Mandrel Bend Tester 170mm or 100mm Maximum Sample Width Cylindrical Mandrel Bend Tester 270mm or 100mm Maximum Sample Width Cylindrical Mandrel Bend Tester 3

Introduction:

A very robust mechanical unit for determining the elasticity, adhesion and elongation of dry paint on metal sheet.
Perfect design, the instrument can be adapted to the diameter of the mandrel used.

The coated specimens up to 70mm width, are bent perfectly and regularly on decreasing mandrels until cracks can be observed.

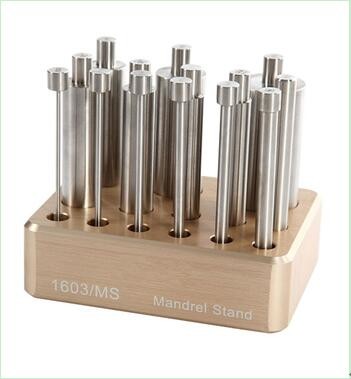

Each instrument is supplied with a kit of 14 stainless steel mandrels with diameters of: 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 19, 20, 25 and 32 mm.



Technical Specification:
◆ Maximum sample width:70mm or 100mm
◆ Sample thickness: 0.3 ~ 1 mm
◆ Mandrels with diameters:
2,3,4,5,6,8,10,12,13,16,19,20,25 and 32mm



Standard:

ASTM D522



Order Information:

1603 Cylindrical Mandrel Bend Tester, width 70mm

1603A Cylindrical Mandrel Bend Tester, width 100mm


Other mandrels are available upon request.
