650 HBW Electronic Brinell Hardness Tester Motorized Brinell Hardnes Tester

  • 650 HBW Electronic Brinell Hardness Tester Motorized Brinell Hardnes Tester
  • 650 HBW Electronic Brinell Hardness Tester Motorized Brinell Hardnes Tester
Menşe yeri Pekin
Marka adı HUATEC
Sertifika ISO, CE, GOST
Model numarası DHB-3000
Min sipariş miktarı 1 adet
Ambalaj bilgileri Standart İhracat Paketi
Teslim süresi 1-4 gün
Ödeme koşulları T/T, PayPal, Western Union
Yetenek temini ayda 500 adet

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
test aralığı 8～650HBW Max, Numunenin yüksekliği 225mm
Mikroskobun büyütmesi 20x Güç Kaynağı ve Voltaj AC220V/50-60HZ
Prensip Elektronik brinell
Vurgulamak

portable brinell hardness tester

,

rockwell superficial hardness tester
Mesaj bırakın
Ürün Açıklaması

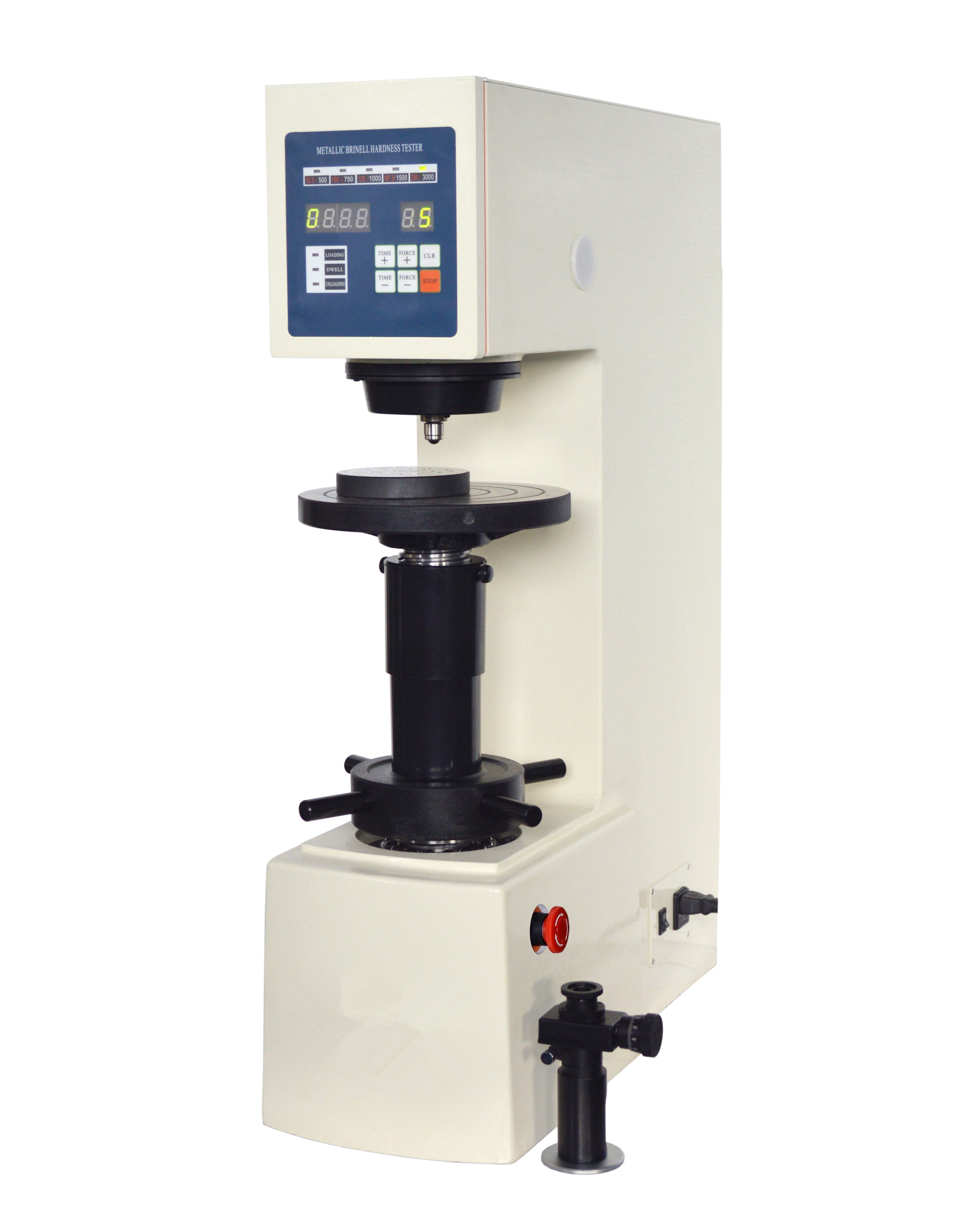

650 HBW Electronic Brinell Hardness Tester Motorized Brinell Hardnes Tester



Usage Range
The Brinell hardness tester that shows the largest indentation among all the hardness tests is able to reflect the comprehensive features of the material , and the test is unaffected by the organization micro-dioptre and the compositional unevenness of the speciment ;and hence it is a hardness testing with high precision. The Brinell hardness test is widely used in such industrial fields as metallurgy , forging , casting , unhardened steel and nonferrous metals industries, as well as in the laboratories, universities , colleges and s-cientific research institutes.

Mains Features
DHB-3000 Electronic Brinell Hardness Tester is a unified product combining the precise mechanical structure with the computer control by means of the mechanical and electrical circuit system, and so it is the more advanced brinell hardness tester in today’s world. The instrument adopts the motorized test force application without weight blocks, and uses 0.5‰ accuracy compression sensor to feedback the information and the CPU control system to automatically compensate the test force lost during the testing. The test force and the load dwell time can be directly set pressing the selected keys on the touch-keyboard, with reliable repetition, precise reading and easy operation.

Main Parameters



Testing range:( 8～650)HBW
Test Force:612.9N(62.5Kgf), 980N(100Kgf), 1226N(125Kgf), 1839N(187.5Kgf), 2452N(250Kgf), 4900N(500Kgf), 7355N(750Kgf), 9800N(1000Kgf), 14700N(1500Kgf), 29400N(3000kgf)
Accuracy of Displayed Hardness Value
Hardness Range(HBW)
≤ 125
125＜HBW≤225
＞ 225
Max, Height of the speciment: 225mm
Max Distance from the indenter center to the instrument panel: 135mm
Magnification of the microscope: 20X
Min Reading Grade of the Drum wheel of the microscope: 0.005mm
Power supply and Voltage: AC220V/50-60Hz
Main Accessories
Tables:Large, Small and V-shaped each
Hard Alloyed Steel Ball Indenters: ￠2.5mm, ￠5mm, and ￠10mm each.
One Microscope: 20X

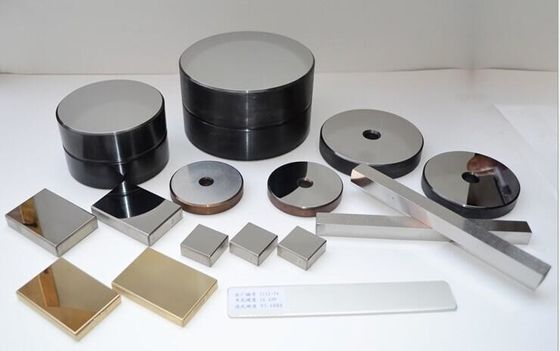

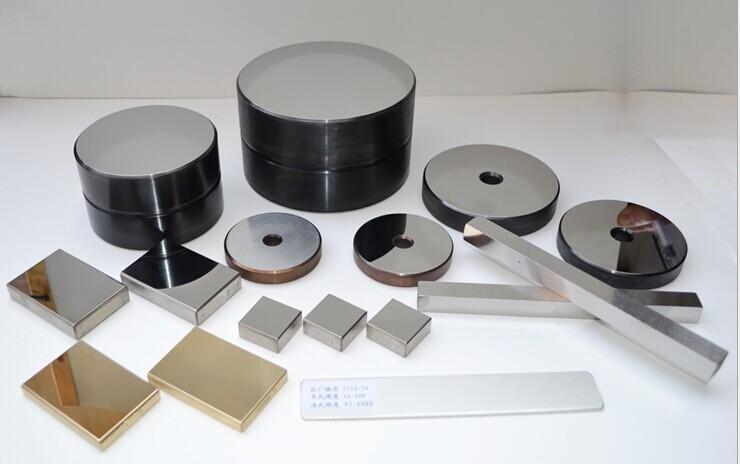

Two Standard Hardness Blocks



650 HBW Electronic Brinell Hardness Tester Motorized Brinell Hardnes Tester 0
